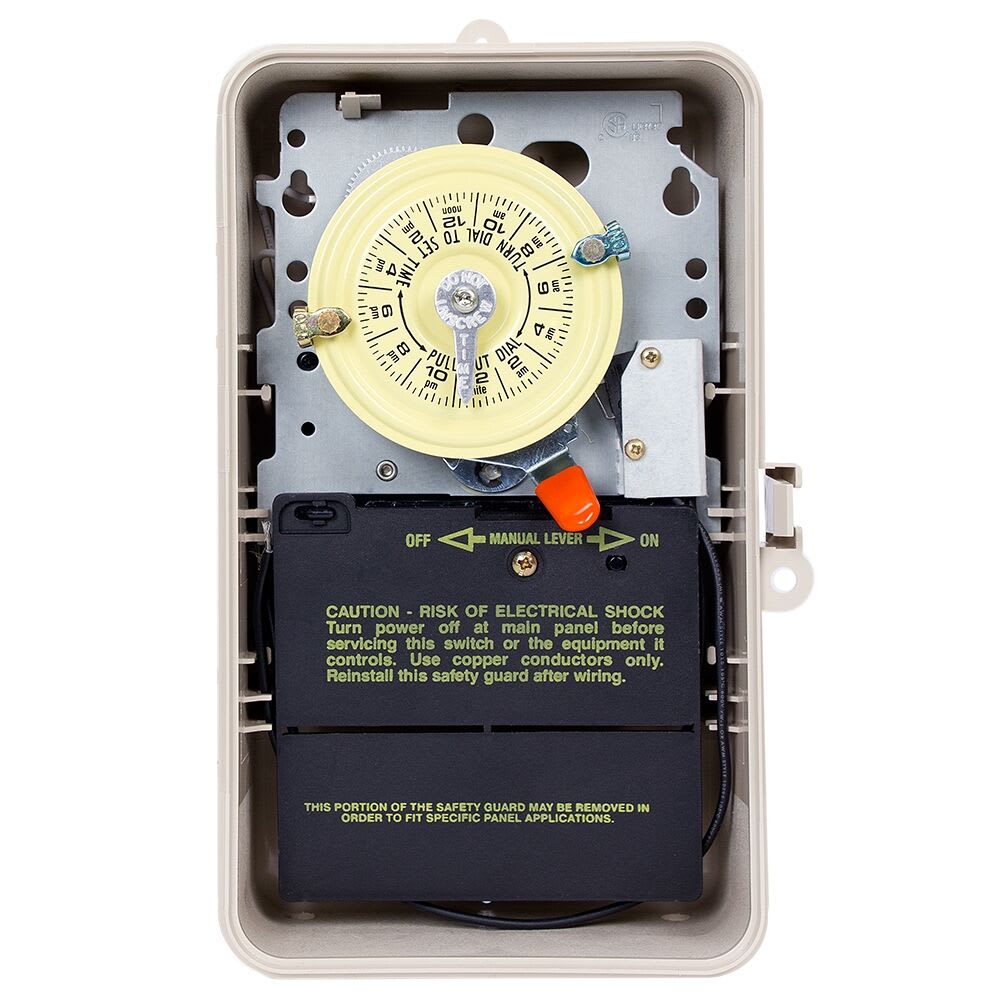

Intermatic Mechanical Timer Switch, Analog/Mechanical 208 to 277 VAC 16 A 5 hp DPST
Pool Professionals – Get 5% Instant Cash Back –
Not a Pro? This price is already yours — no membership needed.
Highlights
3.02 lbs
Weight
Intermatic
Brand
EA
Unit
Product Description
Intermatic Outdoor Timer w/ Heater Delay - 208-277V, 24hr Switch with Heater Cut Off - #T104P201
Features and Benefits
Highest HP ratings in the industry for loads up to 40 amps, providing direct 24 hour control of most loads
Provides 1 to 12 on/off operations each day with minimum on/off times of 1 hour
All models equipped with one "on" and one "off" tripper
Dial industrial grade timer with double pole single throw
Key Benefits
- Highest motor load ratings in the industry
- 12 ON/OFF operations per day
- One ON and one OFF tripper included
- Available with pool heater protection
- Teeter-type terminals for multiple load connections
Specs
Voltage
208 to 277 VAC
Warranty
1 year Limited
AMP Rating
16 A
Dimensions
6-1/2 in. W x 4 in. D x 10 in. H
Applications
For Heater Thermostat Control, Motor Control, Pump Control, Water Circulation
Power Rating
5 hp
